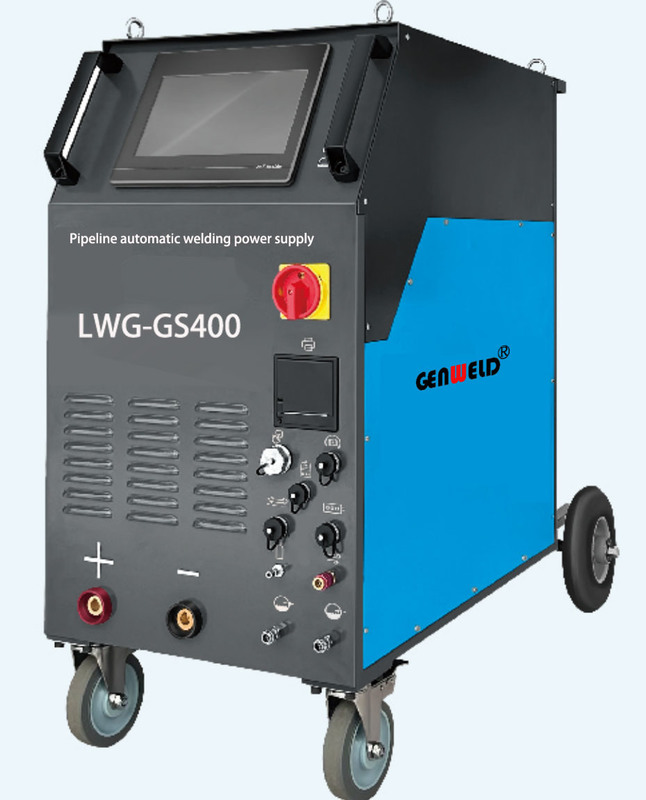

Fully Positioned Automatic Pipe Welding Machine with IoT Technology for Remote Maintenance and Intelligent Programming
Λεπτομέρειες:
| Τόπος καταγωγής: | Chongqing, Κίνα |
| Μάρκα: | GENWELD |
| Αριθμό μοντέλου: | LWG-GS400 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 2-100 |
|---|---|
| Συσκευασία λεπτομέρειες: | 1150*630*940 χλστ |
| Χρόνος παράδοσης: | 30 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ |
| Όροι πληρωμής: | T/T, D/P |
| Δυνατότητα προσφοράς: | 200 μονάδες/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | Fully Positioned Pipe Welding Machine,Automatic Pipeline Welding Machine,IoT Technology Pipe Welding Equipment |
||
|---|---|---|---|
Περιγραφή προϊόντων
The automatic pipe welding power supply features an integrated design: a control system, welding power supply, IoT module, printing module, and circulating cooling system. It connects to a mobile app for real-time monitoring of the welding machine's status, remote upgrades, maintenance, and fault detection.
Function Controls:
Current Control/Pneumatic Core Expansion Control/Wire Feed Control/
Rotational Motion/Arc Length Tracking/Yaw Control/Printer Control/Gun Switch Control/Rotational Motion
Safety Features:
Overvoltage/overload/leakage/arc ignition failure/tungsten needle short-circuit protection/gas shortage alarm/defect detection
Applications:
Refrigeration Industry / Boilers / Hydropower Industry
Nuclear Power Industry / Valves / Chemical Industry
Coal Mining Machinery / Construction Machinery
- IoT Technology
- Remote Maintenance
- Intelligent Programming
Product Features:
- Siemens PLC control with storage for 200 sets of welding parameters.
- Touchscreen + DSP digital signal control for convenient and efficient operation.
- Import and export welding programs via USB flash drive for quick and easy program changes.
- Export historical welding data via USB port, with intelligent automatic parameter calculation.
- Built-in maintenance-free micro printer with one-touch and automatic printing for process evaluation.
- For different pipe diameters, simply enter the pipe diameter and weld without re-adjusting welding parameters.
- Automatic fault detection directly displays the cause of the fault, facilitating repair and maintenance.
- A built-in IoT module enables remote monitoring, programming, diagnosis, and debugging of the equipment, as well as updates to welding programs and the expert welding database.
Customer Site:
